Замок SCHMERSAL AZ15 ZVRK-M20
Series AZ15
Safety Contacts 1 N/C
Connection Type M20
Holding Force 30N
Actuator Included No
IP Rating IP67
Number of Actuating Directions 3
Housing Material Glass Fibre Reinforced Thermoplastic

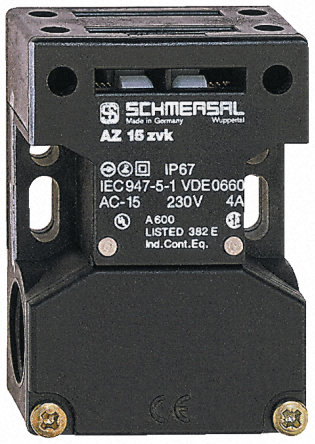

AZ15 Safety Interlock Switch with Separate Actuator

* Not sensitive to dirty conditions by virtue of patented roller system IP67 protection
Note

Actuator must be ordered separately

Approvals

BG, UL, CSA

Standards

IEC/EN60947-5-1, BG-GS-ET-15


Technical Specification
Safety Contacts (when actuator inserted) 1 pair N/C (positive break)
Rated operational current le (AC-15) 4A/230Vac, 2.5A/400Vac, 1A/500Vac max.
Case Material Glass fibre reinforced thermoplastic, self extinguishing
Conduit Entries 3 x M20, 3 x PG11
Operating Temperature -30 to +80°C
Mechanical Life 10 million operations

Информация

Производитель: Schmersal

Артикул производителя: AZ15 ZVRK-M20
