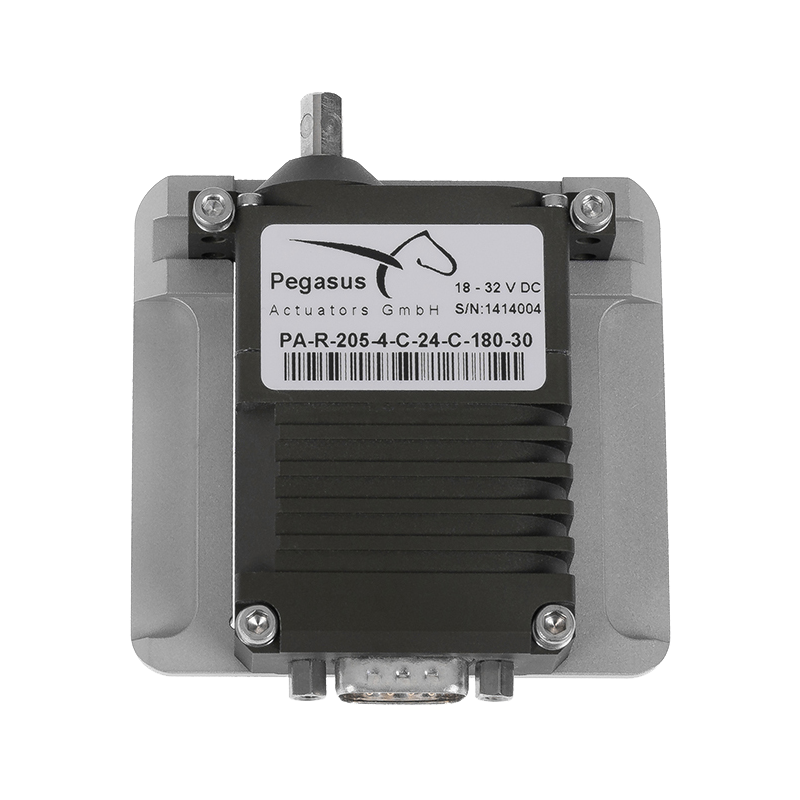

Производитель: Pegasus

Артикул производителя: PA-R-205-4

Характеристики

Continuous torque: 80 Ncm (113 oz-in)

Max. torque: > 200 Ncm (> 283 oz-in)

Operating voltage: 6, 12 or 24 V DC

Travel angle: ± 90° (standard PA-ME / contactless angle sensor), alternative angles on request.

No load speed: 335°/sec

Pc-board: digital - programmable - with differential, analog sensor feedback

Signal:

PWM signal, TTL level (standard configuraton)

PWM signal, differential (RS485 transceiver) (optional)

or RS485data protocol (optional)

Motor: DC motor, Neodym magnet

Gear train: hardened steel, spur gear type, 6 ball races with rigid output shaft (optional with slip clutch output shaft PA-SC).

Case: aluminum, water- and dust protected (IP67), with solid horizontal and vertical 4-point fixation.

Weight: 130 gr. (4,6 oz)

Подробное описание:  Скачать
