Frame Size 17
Step Angle 0.9°
Voltage Rating 24Vdc
Holding Torque 200mNm

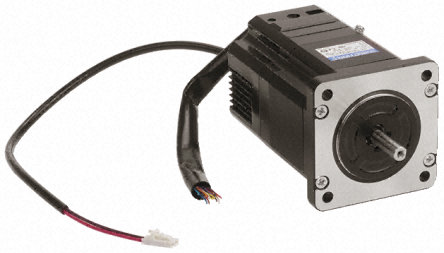

Stepper Motor with Integrated Drive - NEMA 17

The integrated design of the SanMotion microstep driver and high torque motor enables a more compact installation and less wiring configuration for motion control. Three types of operating mode can be selected to match the specific application including a programmable parallel mode, step/direction pulses mode, and serial RS 485 communication.

* Microstep function: 16 divisions, 250kpps max input frequency
Three operation modes - Control by command pulses (step & direction); Programmable control by general-purpose I/O (max 32 programs); Control by serial communication (RS485 standard)
5 digit LED display for alarm/status
UL/CSA/CE certified
Specified Frame Size Motors

Specified Frame Size Motors

1.8° Step Angle
The motors are directly compatible with the stepper motor drive boards (typical stock no. 255-9065 which can provide micro stepping facilities) and also drive either motor (if required) in the half step mode i.e. 0.9° per step resulting in higher resolution, greater performance stability and faster stepping rates. Direction, velocity, acceleration/deceleration can be controlled by a stepper motor controller.

Applying the correct electrical pulse sequence to the windings of the stepper motor results in a 1.8° step angle rotation of the spindle (i.e. 200 steps per revolution). When correctly loaded and driven these motors will produce discrete output steps. The number of steps and speed of rotation are determined by the number of pulses and frequency of the input signal. This provides an ideal method for speed and position control. The motors are directly compatible with stepper motor drive boards.
Applications include:

* Robotics
Paper feed mechanisms
Teletype printers
Small machine tools
Computer peripherals
X-Y plotters

Информация

Производитель: Sanyo Denki

Артикул производителя: DB21M142S-01
