KELLER (Switzerland)

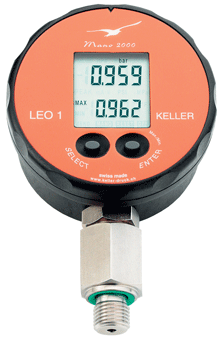

Digital Manometer LEO 1 with Peak Recording

LEO 1 is a micro-processor controlled, accurate and versatile digital pressure measuring instrument with integrated fast peak-, max.- and min.-function.

The instrument is used in two modes:

Mano-Mode:
The pressure is measured twice per second and displayed. The top display indicates the actual pressure, the bottom display shows the MAX.- or MIN- pressure since the last RESET.

Peak-Mode:
The pressure is measured 5'000 times per second and is brought to the display twice per second. The top display shows the actual pressure, the bottom display the peak- (MAX.) or trough-pressure (MIN.).

LEO 1 has two operating keys. The left key is to turn the instrument on, to select the functions and the pressure units. The right key executes the selected function or unit. The right key is also used to switch between the MAX.- and MIN.-value in both modes.



Pressure Ranges -1...3 bar
-1...30 bar
0...300 bar
0...700 bar
0...1000 bar
Total Error Band (0…50 °C) Storage- / Operating Temperature -20...70 °C / 0...50 °C
Compensated Temperature Range 0...50 °C
Protection

IP65

Информация

Производитель: KELLER (Switzerland)

Артикул производителя: LEO 1
